Lovol · Cosechadoras · Serie Cosechadora de flujo axialLovol · Combines · Axial-flow combine

GK120Cosecha rápida, adaptación total.Fast harvest, total adaptation.

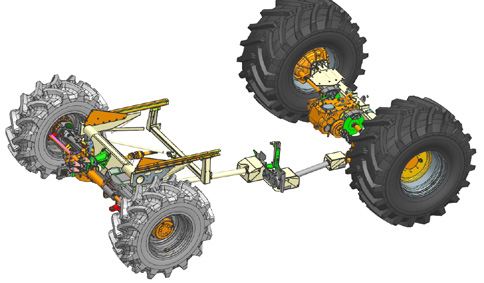

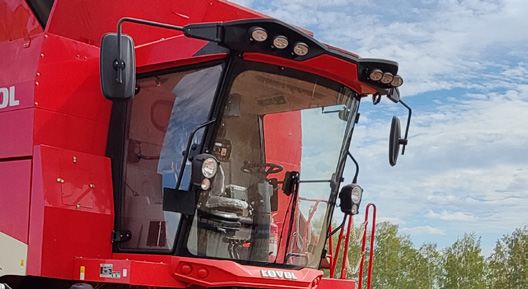

Cosechadora autopropulsada de tamaño medio con rotor axial longitudinal: alta eficiencia de cosecha y traslado rápido entre lotes, la primera opción para fincas grandes. Cabezales intercambiables de arroz, trigo, maíz, soya y otros granos para cosechar todo el ciclo con una sola máquina. Transmisión hidrostática Linde, tracción 4×4 mecánica y cabina presurizada con aire acondicionado.A medium-size self-propelled combine with a longitudinal axial rotor: high harvesting efficiency and fast moves between plots, the first choice for large farms. Interchangeable rice, wheat, corn, soybean and grain headers to harvest the whole cycle with one machine. Linde hydrostatic drive, mechanical 4WD and a pressurised air-conditioned cab.

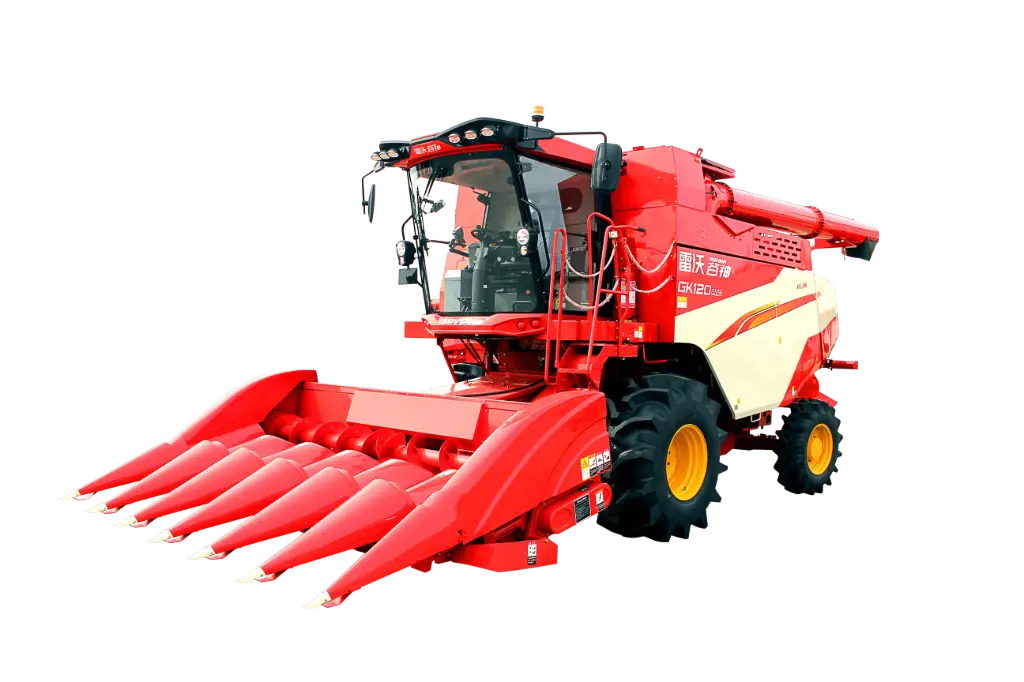

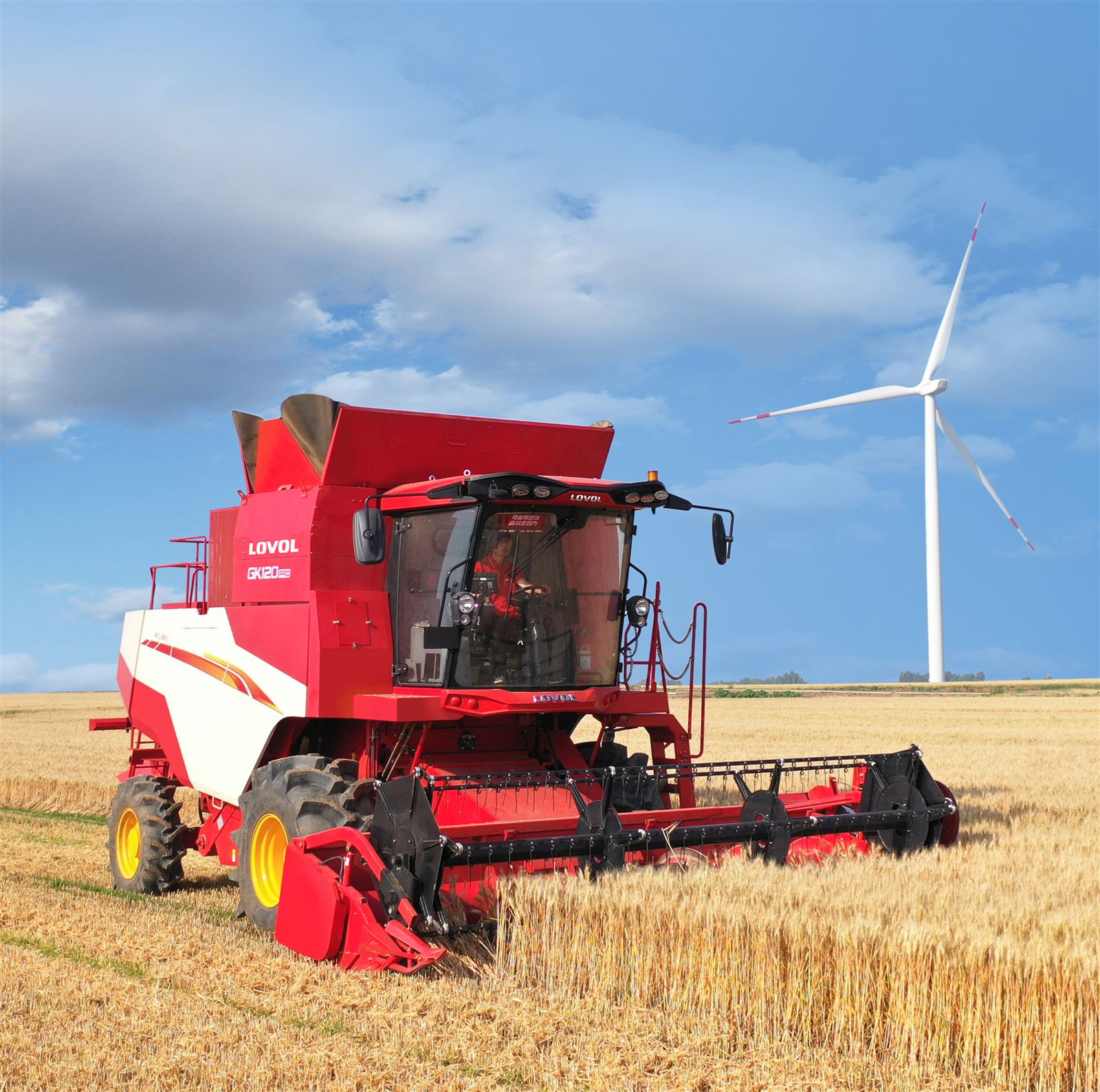

GK120Lovol GK120 · 12 kg/s
12kg/sCapacidad de alimentaciónFeeding capacity
1–2ha/hRendimiento por horaHourly productivity
7,5Tolva de granoGrain tank
254HPMotor Weichai WP7GWeichai WP7G engine
Diseñado para el trabajoBuilt for work

Lo que lo distingue.What sets it apart.

GK120
12 kg/s · Capacidad de alimentaciónFeeding capacity1–2 ha/h · Rendimiento por horaHourly productivity7,5 m³ · Tolva de granoGrain tank254 HP · Motor Weichai WP7GWeichai WP7G engine
Ficha técnicaTechnical data

Datos de fábrica, tal cual.Factory data, as is.

MáquinaMachine

TipoTypeAutopropulsada de ruedas, cosecha directa de grano, alimentación total
Capacidad de alimentaciónFeeding capacity12 kg/s
RendimientoProductivity1,0 – 2,0 ha/h
Velocidad de trabajoOperating speed1,05 – 7,90 km/h
Consumo por hectáreaFuel per hectare≤ 23,5 kg/ha
Despeje mínimoMinimum clearance370 mm

MotorEngine

MotorEngineWeichai WP7G220E301A / WP7G260E301
TipoTypeEn línea, refrigerado por agua, 4 tiempos
Potencia nominalRated power161 / 186,8 kW (219 / 254 HP)
Régimen nominalRated speed2.200 rpm
Tanque de combustibleFuel tank500 L
EmisionesEmissionsChina no-road etapa III

CabezalesHeaders

Arroz y trigoRice and wheat5.340 / 7.000 mm
MaízCorn6 hileras · 700 / 750 mm

Trilla y limpiezaThreshing and cleaning

DisposiciónArrangementRotor axial longitudinal
RotorDrumØ 660 × 3.015 mm

TolvaGrain tank

CapacidadCapacity7,5 m³
Altura de descargaUnloading height4.800 mm

Chasis y dimensionesChassis and dimensions

Distancia entre ejesWheelbase3.720 mm
TrochaWheel track2.820 / 2.600 mm
TracciónDriveHidráulica delantera + mecánica trasera
Largo × ancho × altoL × W × H9.520 × 5.700 × 4.100 mm (cabezal 5,34 m) · 9.520 × 7.300 × 4.100 mm (cabezal 7 m)
PesoMass13.500 kg (cabezal 5,34 m) · 15.650 kg (cabezal 7 m)

Valores según la ficha técnica del fabricante (Weichai Lovol Intelligent Agriculture). Las configuraciones opcionales pueden variar según la unidad disponible; confirme con nuestro asesor antes de decidir.Values from the manufacturer's data sheet (Weichai Lovol Intelligent Agriculture). Optional configurations may vary by unit in stock; confirm with our advisor before deciding.
